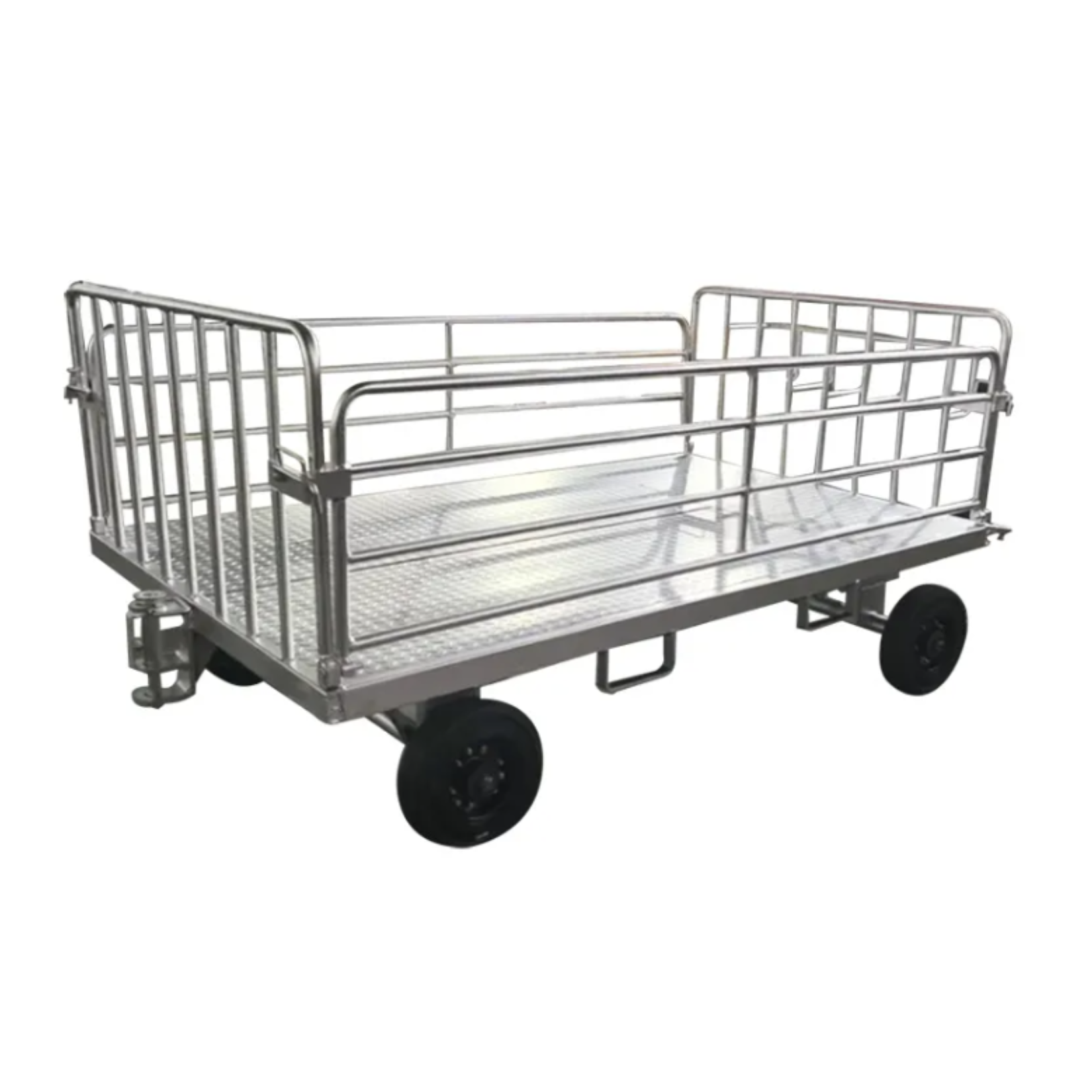

Airport Bulk Baggage Cart BC-2515E-G

This cart is robustly engineered for airport apron and cargo terminal bulk luggage transportation. Constructed with lightweight yet high-strength aluminum alloy, it features a diamond anti-slip platform and removable tubular guardrails to secure loose baggage and prevent cargo falling during transit. The heavy-duty solid rubber wheels deliver stable movement on rough tarmac surfaces, with reliable towing coupling design for connection to airport tow tractors.

Its modular guardrail structure allows partial disassembly for flexible loading of oversized goods. The corrosion-resistant surface withstands harsh outdoor environments including rain and temperature changes, ensuring long service life. Widely used for transferring bulk luggage, cargo and ground supplies between aircraft and terminals. It offers efficient, safe and durable bulk material handling for aviation ground operations. Custom sizes, load capacities and logo printing are available to meet diverse airport ground handling demands.

• Load capacity: 2000kg (load center is the center of the platform, load evenly distributed)
• Deck dimensions: 2600x1600mm
• vehicle height: 1350mm
• deck top height: 585mm
• Material of frame: Aluminium alloy
• deck clad with 3mm patterned plate
• V-shaped deck with drainage holes
• Overall dimensions (L*W*H): 3830x1600x1350mm
• Front and rear railings: 7650mm high
• Side rails: 4500mm high; both side rails are removable.

Configuration

• Both front and rear tires are 4.00 -8 (solid), 2 front, 2 rear arrangement;
• Steering utilizes a slewing bearing for 360° rotation.

Structure

• Handle: Welded from high-quality seamless steel pipe. The handle features an adjustable brake, which can be activated by simply lowering the handle;
• The rear latch is spring-loaded with a safety lock, providing a triple protection design;
• Front and rear axles are constructed from seamless pipe with a wall thickness of 8 mm or greater;
• The axle head and tire are secured with a slotted nut and split pin for rotational stability.

Paint and Markings

• Entire vehicle is hot-dip galvanized.
