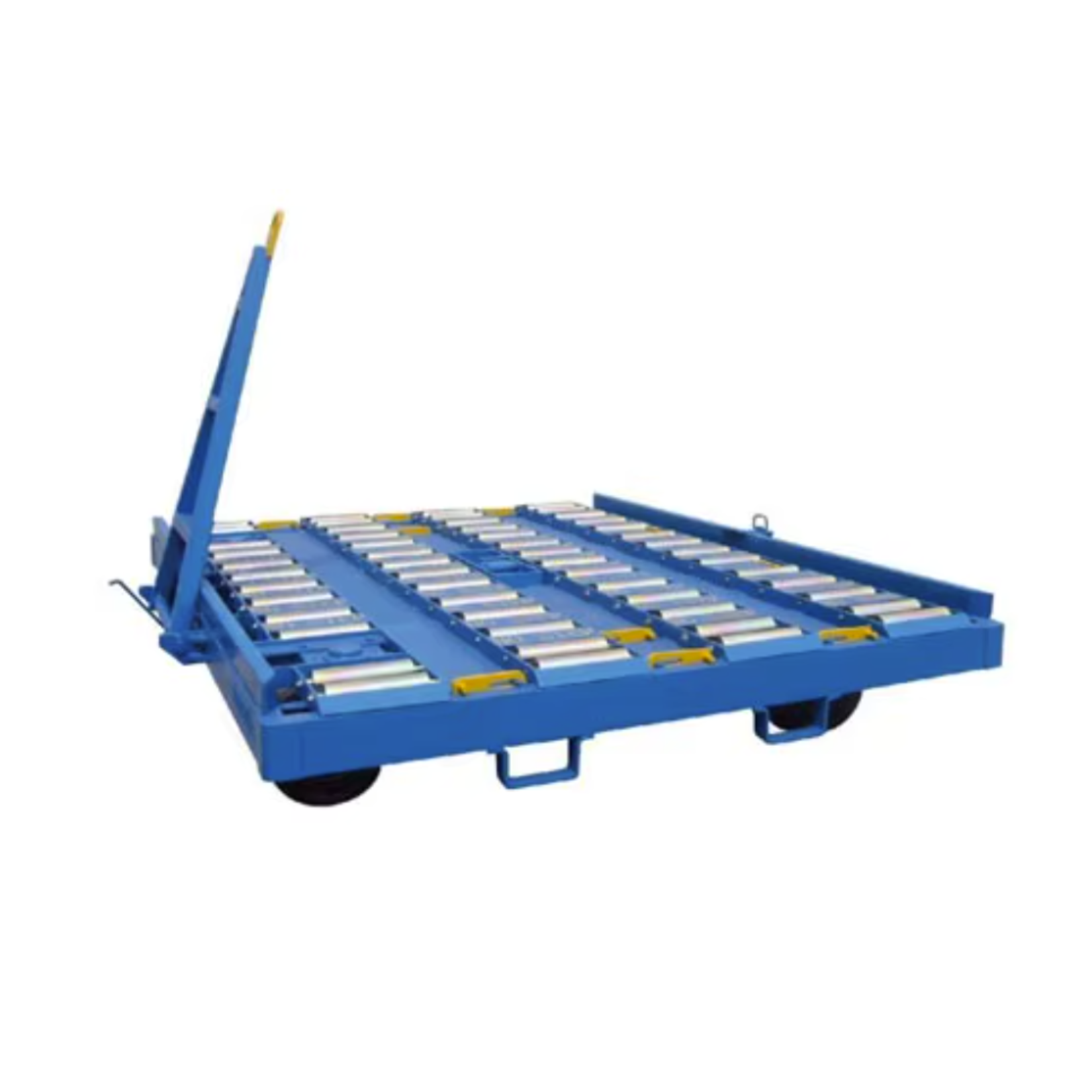

Airport Container/Pallet Dolly BC070K(B)

This Airport container/pallet Dolly is mainly used for loading aviation pallet, container.

• Mainly for transportation of P1P/P6P/LD1/LD2
• Load: Side
• Max Payload: 7000 kg
• Tare: 1352 kg
• Wheel base: 1660mm
• Overall dimension (L*W*H): 4373mm*3376mm*1920mm
• Platform Height: 508mm-518mm
• Towbar height dropped: 661mm
• Length Between Tyres: 2400mm
• Rear wheels: 400mm*100mm
• Front Wheels: 400mm*100mm
• Roller diameter: 76mm
• Max speed: 25 Km/h
• Min turn radius: <= 4500mm

Feature

1.Solid cushion for long life;
2. Restraint/Stoppers: Stoppers at both ends for side guides & restraints for positive
locking;
3. 2 Stoppers each at both ends for sides guides;
4. Tow hitch at rear end for multi-dolly towing linkage;
5. 54 Galvanized rollers chequered plate walkways;
6. Tow bar for multi-dolly linkage & brake functions
7. Fork tynes at both sides support forklift handing
8. Powered brush or blast & user’s optional finish paints
9. Unit ID number pad at request
