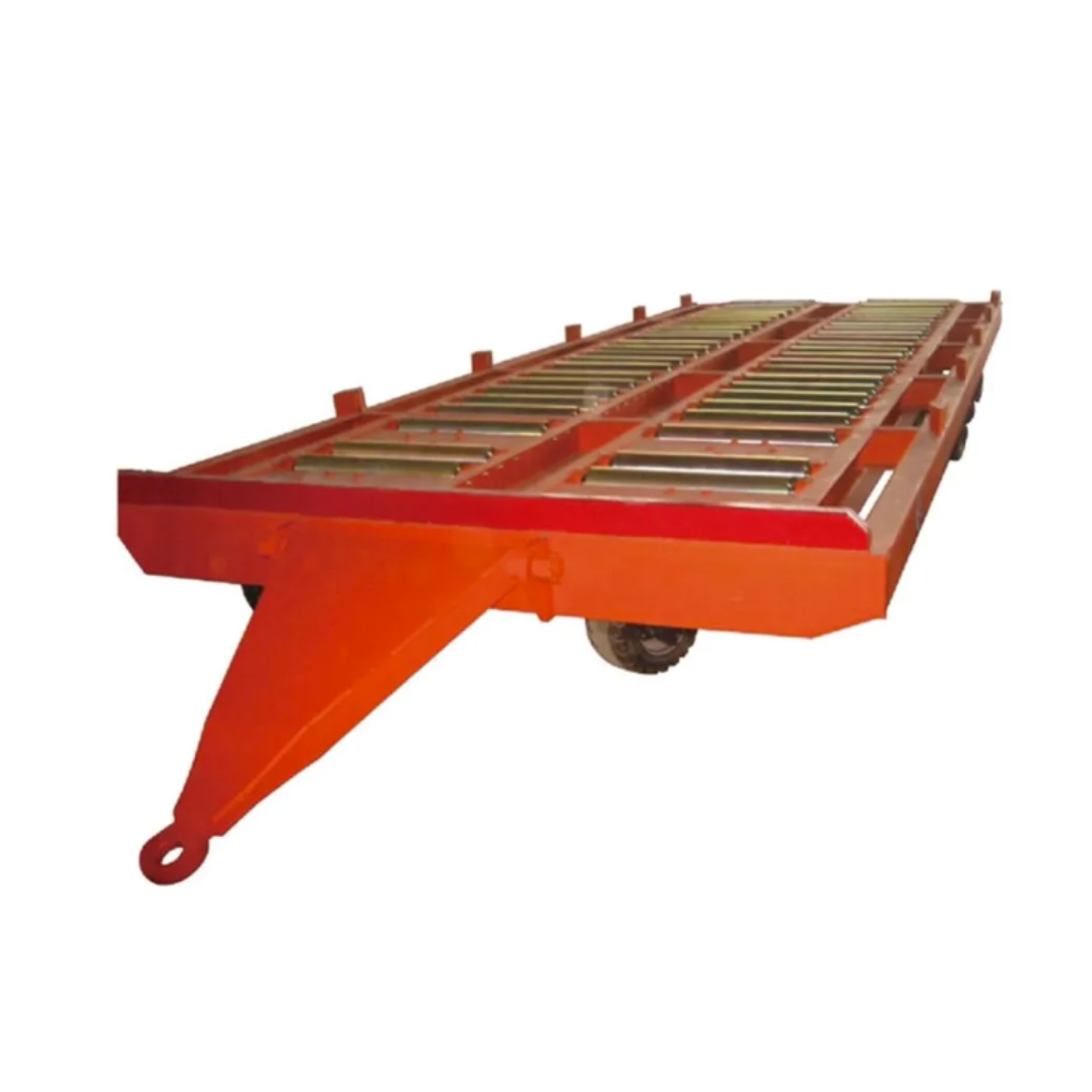

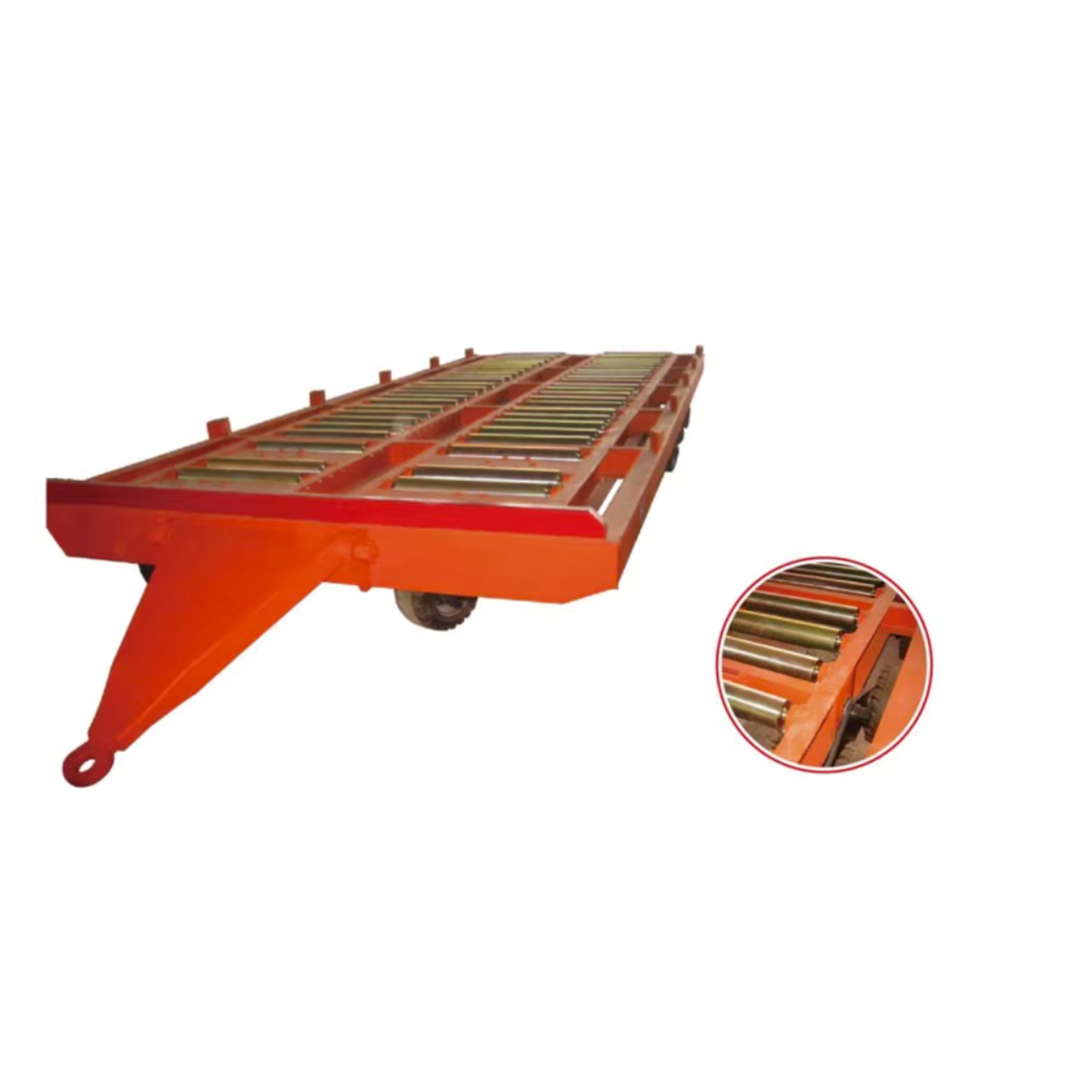

Airport Container/Pallet Dolly BC270

• Mainly for transportation of P1P/P6P/PLA/PRA/P7E pallet
• Load: Rear
• Max Payload: 27,000 kg
• Overall dimension (L*W*H): 8100mm*2700mm*1555mm
• Wheel base: 4225mm
• Towbar height dropped position: 616mm
• Platform Height: 528mm
• Rear wheels: 380mm*175mm
• Length Between Tyres: 1300mm
• Roller diameter: 108mm
• Front Wheels: 360mm*175mm

Feature

1.Heavy duty channel profile  steel & tube welded frame work galvanized roller bed floor for easy operation;
2.Restrainte/Stoppers:Stoppers at both ends for side guides & restraints for positive locking;
3.Tyres:solidn cushion for longer life;
4.Tow bar for multi-dolly linkage;
5.Powered brush or blast & user’s optional finish paints;
6.Unit ID number pad at request.
