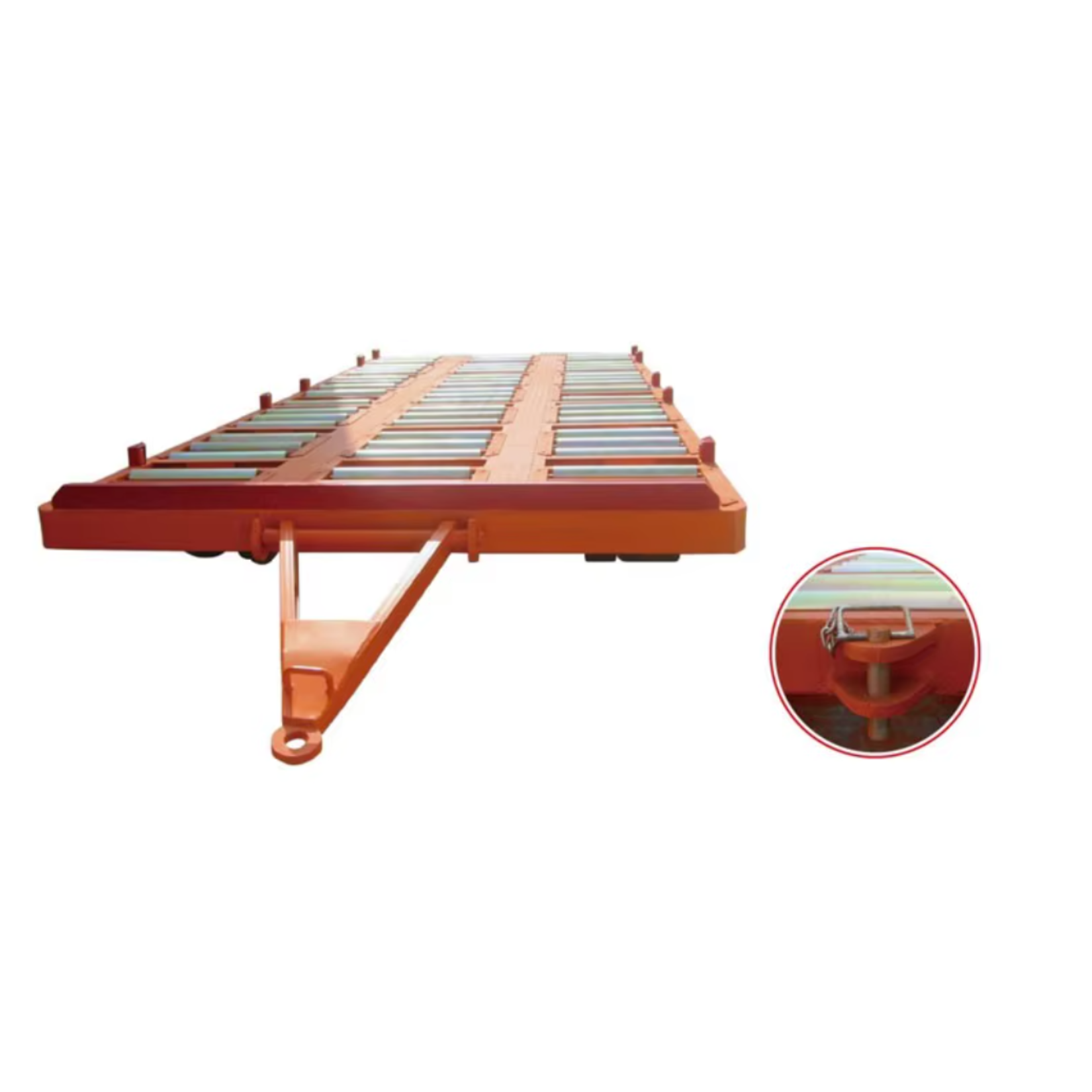

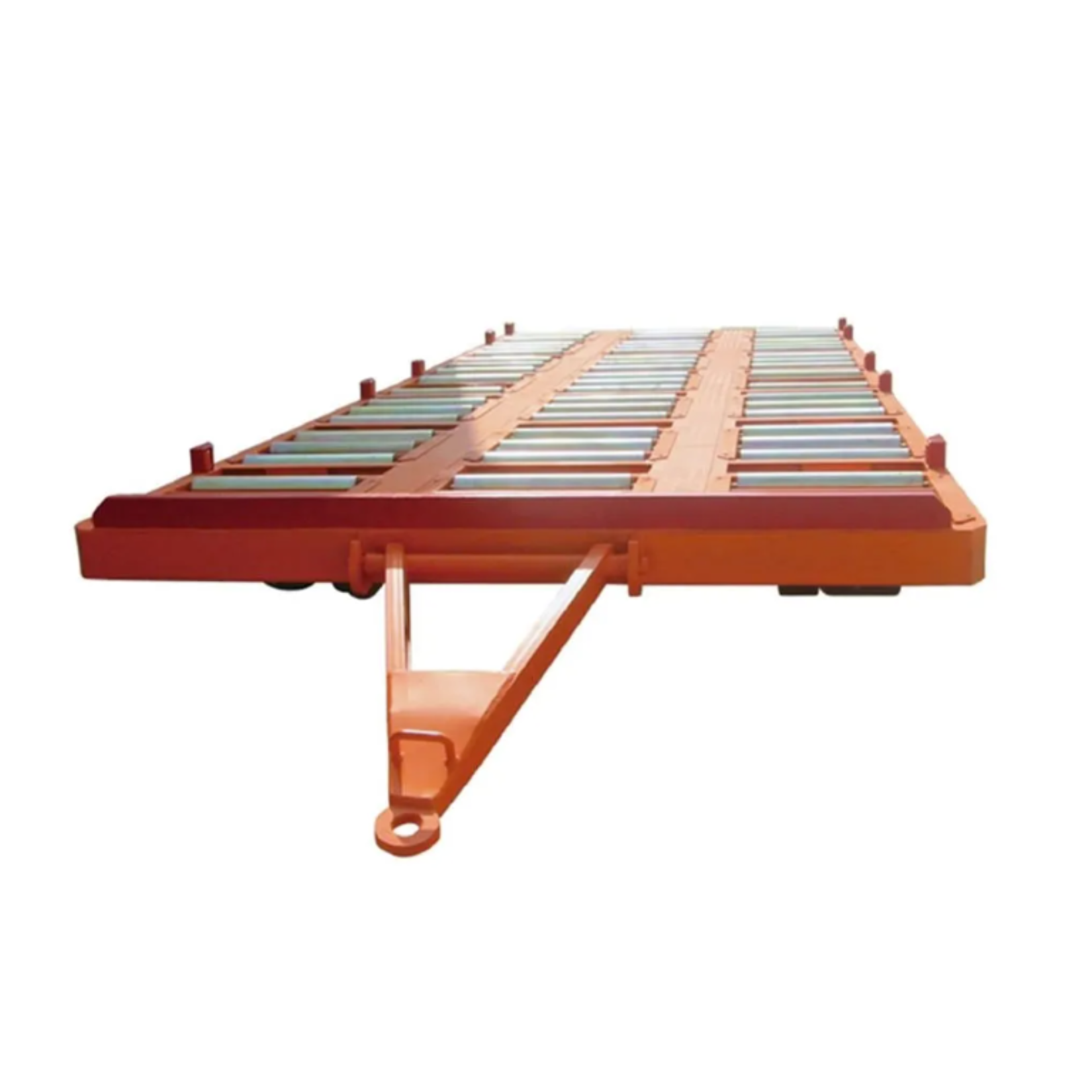

Airport Container/Pallet Dolly BC180

• Mainly for transportation of P1P/P6P/PLA/PRA/P7E pallet
• Load: Rear
• Max Payload: 18,000 kg
• Overall dimension (L*W*H): 7925mm*2725mm*1636mm
• Wheel base: 4348.5mm
• Towbar height dropped position: 658mm
• Platform Height: 536mm
• Rear wheels: 400mm*130mm
• Length Between Tyres: 1925mm
• Roller diameter: 89mm
• Front Wheels: 260mm*160mm

Feature

1.Heavy duty channel profile steel & tube welded framework galvanized roller bed floor
for easy operation;
2. Restraint/Stoppers: Stoppers at both ends for side guides & restraints for positive
locking;
3. Tyre: Solid cushion for longer life;
4. Tow bar for multi-dolly linkage;
5. Powered brush or blast & user’s optional finish paints
6. Unit ID number pad at request
