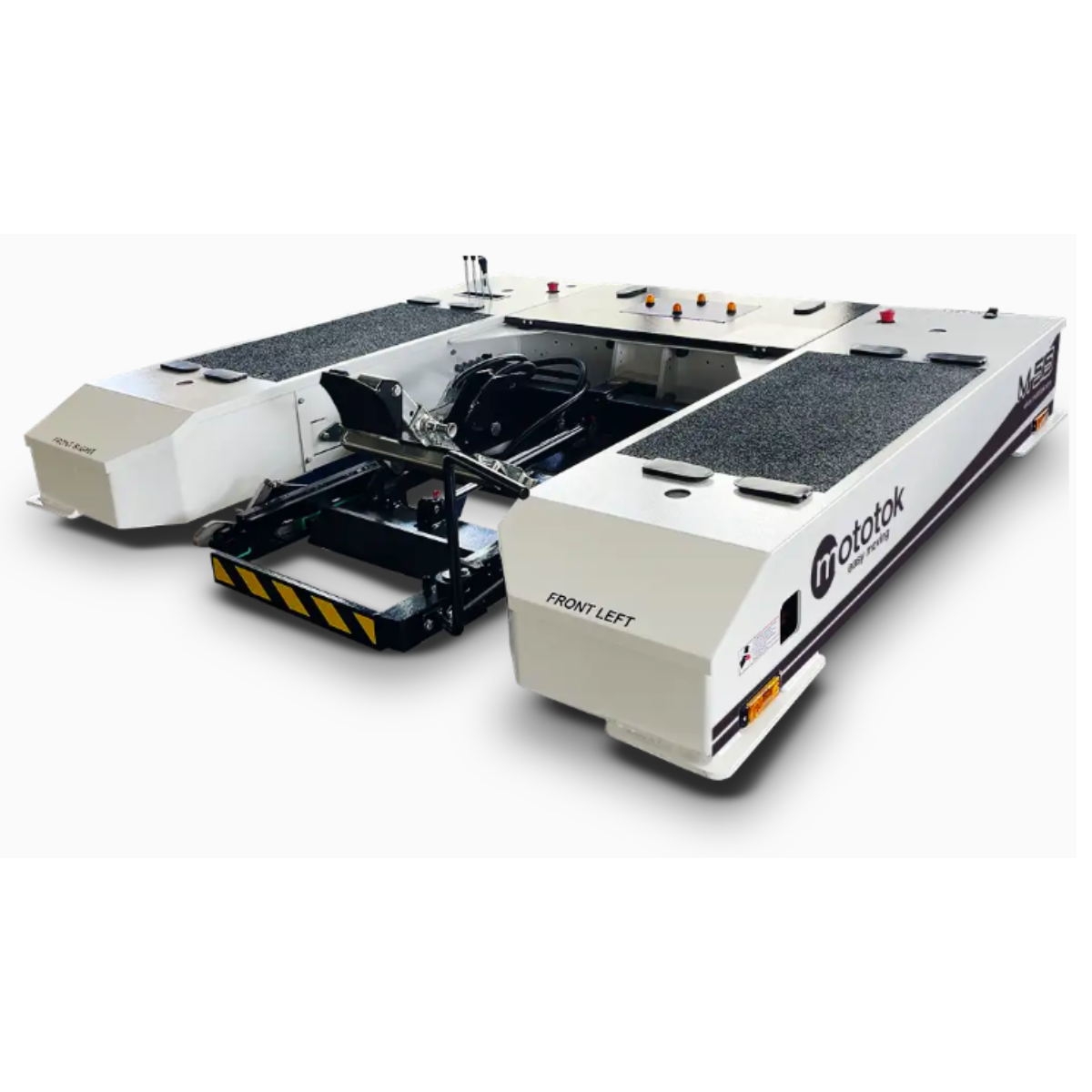

Mototok M515 (Max. 15 T)

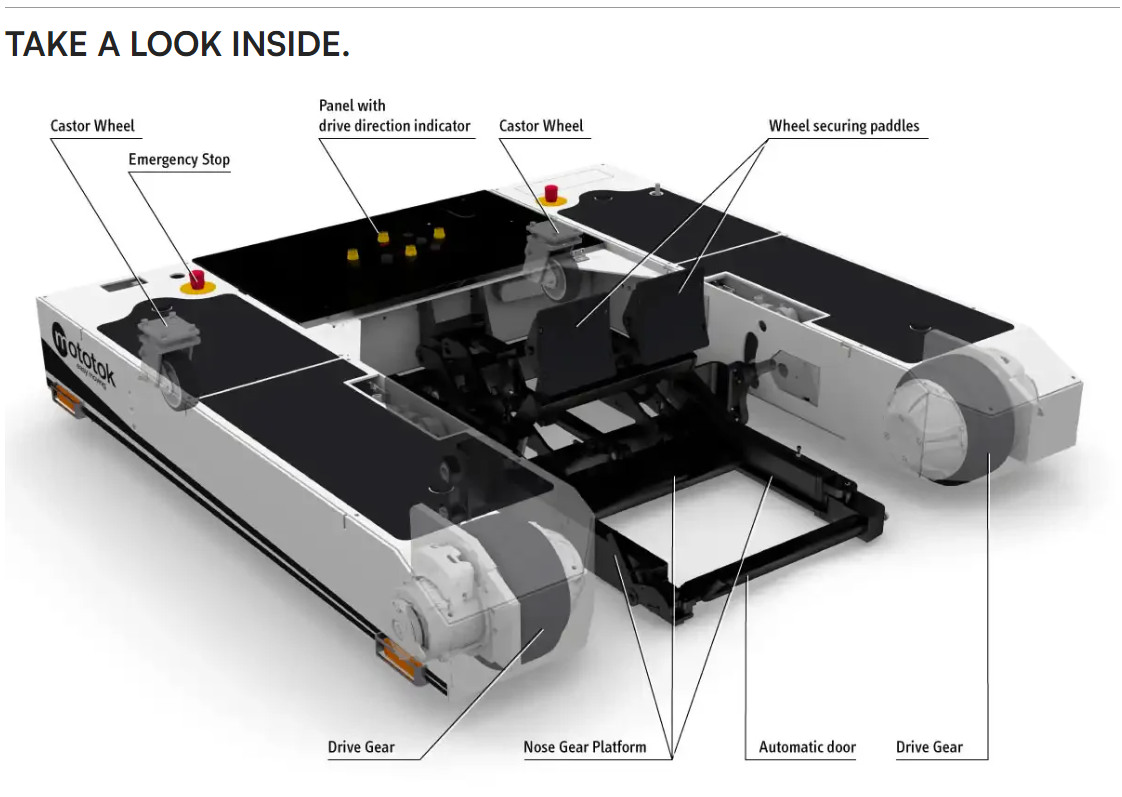

The M 515 is a robust entry-level solution with hydraulic support. Platform, carriage, and hold-down clamps are operated manually via separate leverson the vehicle. The door mechanism is controlled mechanically via a Bowden cable and assisted by a spring opening system. The system stands out for its simplicity, reliability, and reduced complexity. A LED battery indicator provides clear status information on charge level.

Includes the following features:

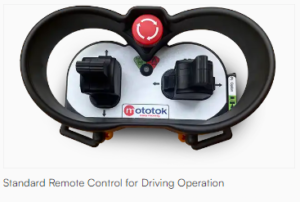

Standard radio remote control
Manual nosegay loading process
Safety flashlights and beeper

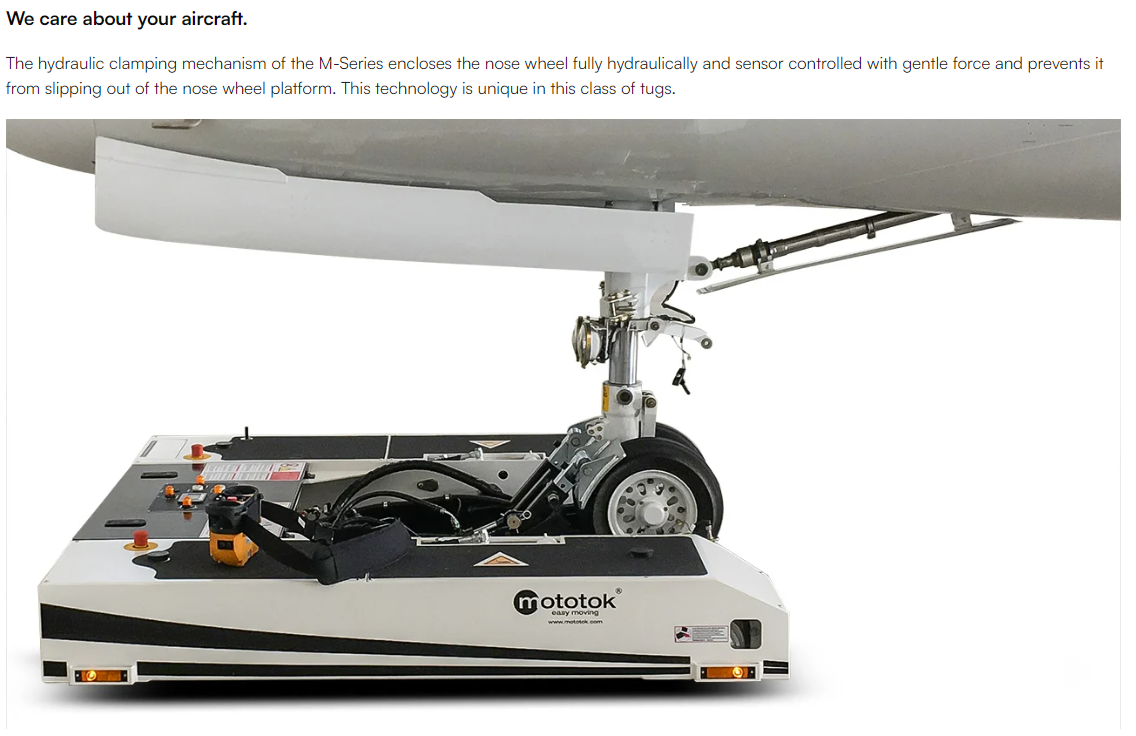

Safety nose wheel paddles for a safe and gentle clamping of the nose gear – prevents the nosewheel from rising and slipping out of position. The securing device is hydraulically lowered onto the nosewheel and securely locked at the push of a button on the remote control.

Optional features:

Ground power cable for gound power connection 13,4V / 25,6 V (short time up to 4600 A)
Trailer coupling adaptor for multi-functional extensions
Automatic controls by ground markings and camera (AGV functionality)
Military spiral cable connection (15 m) between Mototok and control unit
Saltwater resistance
Standard Oversteering Protection System with Shearpin
